Connector End View C340 - Inline

OEM Connector End Views

Source configuration appliesSource reference 3,907HTML edition
← Chapter contentsManual collection
12 CR106 (VT-GY) 18 14D231 13 RR105 (GY-YE) 18 14A005 13 RR106 (YE-OG) 18 14D231 14 CR105 (GN-BU) 18 14D231 14 CR109 (BN-BU) 18 14A005 15 RR105 (GY-YE) 18 14D231 15 RR109 (BU-GN) 18 14A005 16 * *

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

7U2Z-14S411-KB

WPT-1393

Gauge:

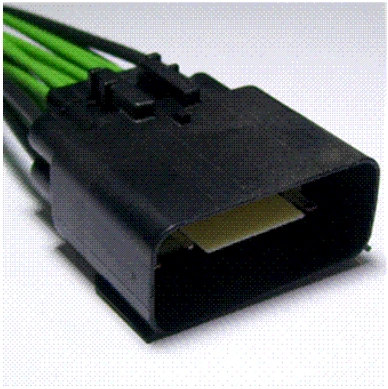

Connector End View C340 - Inline — original illustration 1, reference 3907Original colors & callouts · Select to enlarge

14 18

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

Connector - Inline

For Mating Connector Refer To WPT-1142

Ford_Mustang_all_2015-2017.pdf · source reference 3907

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
