Connector End View C341a - Driver Seat Module (Dsm)

OEM Connector End Views

Source configuration appliesSource reference 3,908HTML edition
← Chapter contentsManual collection

CONNECTOR VIEWS > CONNECTOR END VIEW C341A - DRIVER SEAT MODULE

(DSM)

Connector:C341A

Description

DRIVER SEAT MODULE (DSM)

Color

GY

Harness

14D231

Base Part #

part# N/A

Service Pigtail

See Below

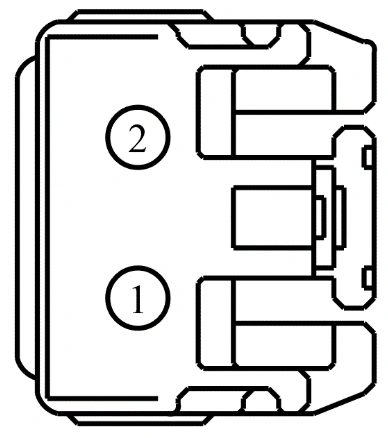

Connector End View C341a - Driver Seat Module (Dsm) — original illustration 1, reference 3908Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBX05 (VT-RD)

14

POWER - SEAT # POWER SEAT SWITCH

2

GD904 (BK-BU)

14

GROUND - DRIVER SEAT # SEAT SWITCH

Ford_Mustang_all_2015-2017.pdf · source reference 3908
