Connector End View C341b - Driver Seat Module (Dsm)

OEM Connector End Views

Source configuration appliesSource reference 3,910HTML edition

← Chapter contents Manual collection

part# N/A

Service Pigtail

Not Available

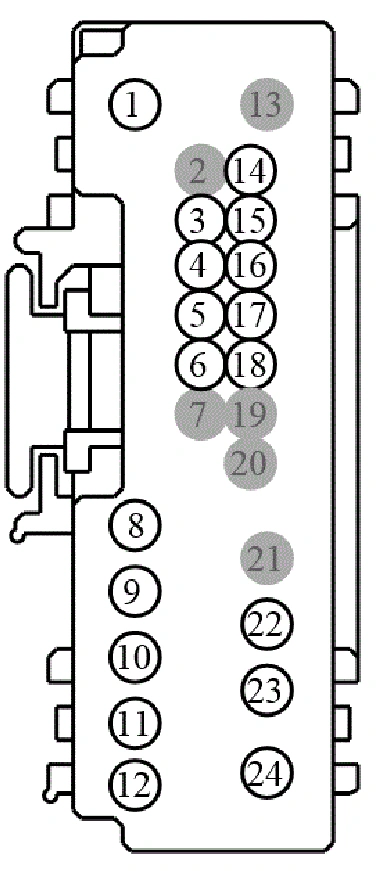

Connector End View C341b - Driver Seat Module (Dsm) — original illustration 1, reference 3910Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBX03 (BU-RD) 18		POWER - SEAT # BATTERY LOGIC
2	*	*	Not Used
