Connector End View C352 - Front Seat Control Switch LH

OEM Connector End Views

Source configuration appliesSource reference 3,915HTML edition

← Chapter contents Manual collection

18

Pin material:

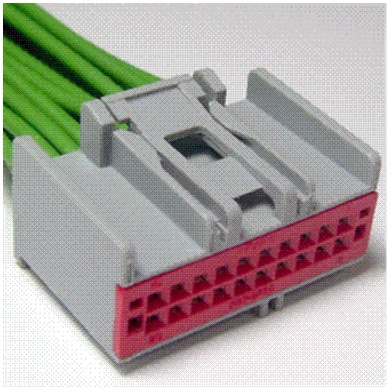

Connector End View C352 - Front Seat Control Switch LH — original illustration 1, reference 3915Original colors & callouts · Select to enlarge

Silver

Cavities:

20

Vehicle Uses

Instrument Cluster

Module - Seat Memory

Monitor - Video/DVD

Radio - Amplifier

Switch - Heater A/C Blower (Rear)

CONNECTOR VIEWS > CONNECTOR END VIEW C352 - FRONT SEAT CONTROL

SWITCH LH

Connector:C352

Description

FRONT SEAT CONTROL SWITCH LH

Color

Harness

14D231

Base Part #

part# N/A

Service Pigtail

See Below
