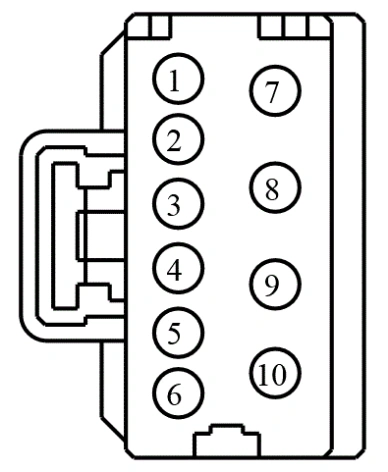

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CPS25 (WH-VT) | 20 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | |
1 | CPS25 (WH-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | |
2 | CPS24 (GY) | 20 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | |
2 | CPS24 (GY) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | |
3 | CPS19 (GY-VT) 18 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | ||
4 | CPS18 (BN-GN) | 18 | SWITCH - DRIVER LUMBAR PUMP | |
5 | CPS23 (GN-VT) | 20 | SWITCH - SEAT ADJUST. DRIVER FORWARD |
