Connector End View C356 - Seat Position Sensor LH

OEM Connector End Views

Source configuration appliesSource reference 3,918HTML edition

← Chapter contents Manual collection

Connector End View C356 - Seat Position Sensor LH — original illustration 1, reference 3918Original colors & callouts · Select to enlarge

10

Vehicle Uses

Module - Transfer Case Shift Control

CONNECTOR VIEWS > CONNECTOR END VIEW C356 - SEAT POSITION SENSOR LH

Connector:C356

Description

SEAT POSITION SENSOR LH

Color

Harness

14D231

Base Part #

part# N/A

Service Pigtail

See Below

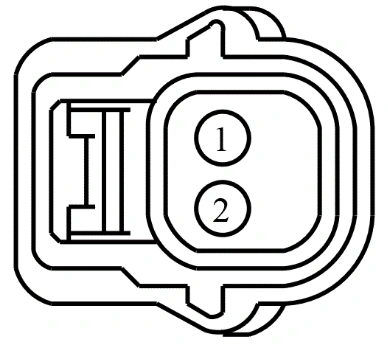

Connector End View C356 - Seat Position Sensor LH — original illustration 2, reference 3918Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers
