Connector End View C362 - Front Seat Track Motor LH

OEM Connector End Views

Source configuration appliesSource reference 3,920HTML edition

← Chapter contents Manual collection

Description

FRONT SEAT TRACK MOTOR LH

Color

DK GY

Harness

14D231

Base Part #

part# N/A

Service Pigtail

See Below

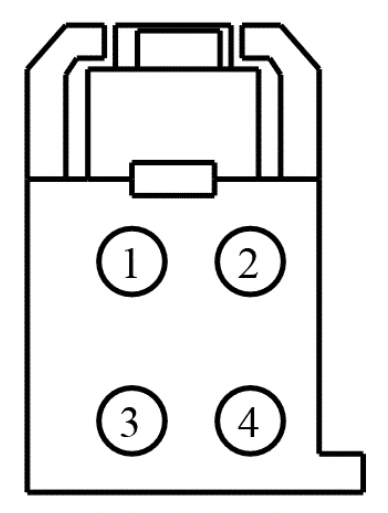

Connector End View C362 - Front Seat Track Motor LH — original illustration 1, reference 3920Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	CPS01 (GN-BU)	14	CTRL MOD. - DRIVER SEAT SLIDE FORWARD
1	CPS23 (GN-VT)	14	SWITCH - SEAT ADJUST. DRIVER FORWARD
2	RPS12 (YE-VT)	20	CTRL MOD. - DRIVER SEAT SENSORS RECLINE -

Ford_Mustang_all_2015-2017.pdf · source reference 3920
