Connector End View C367 - Driver Side Airbag

OEM Connector End Views

Source configuration appliesSource reference 3,923HTML edition

← Chapter contents Manual collection

RPS12 (YE-VT)

CTRL MOD. - DRIVER SEAT SENSORS RECLINE -

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

CU2Z-14S411-BAA

WPT-1311

Gauge:

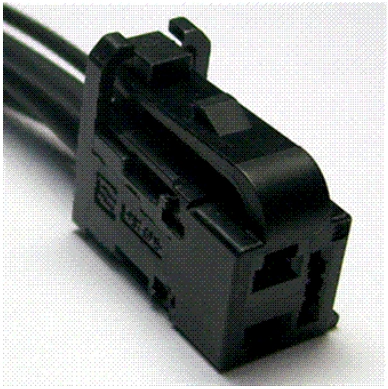

Connector End View C367 - Driver Side Airbag — original illustration 1, reference 3923Original colors & callouts · Select to enlarge

20

Pin material:

Tin

Cavities:

4

Vehicle Uses

Motor - Seat Height (Front)

Motor - Seat Recline

CONNECTOR VIEWS > CONNECTOR END VIEW C367 - DRIVER SIDE AIRBAG

Connector:C367

Description

DRIVER SIDE AIRBAG

Color

Harness

14C687/14D232

Base Part #

part# N/A

Service Pigtail

See Below
