CONNECTOR VIEWS > CONNECTOR END VIEW C380 - FRONT POWER OUTLET

SOCKET

Connector:C380

Description

FRONT POWER OUTLET SOCKET

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

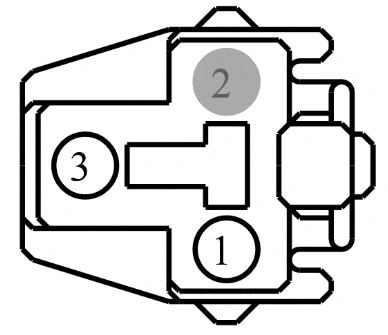

Connector End View C380 - Front Power Outlet Socket — original illustration 1, reference 3925Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB54 (VT-OG) 16		FUSE - 54 OR CIRCUIT BREAKER
2	*	*	Not Used

Ford_Mustang_all_2015-2017.pdf · source reference 3925
