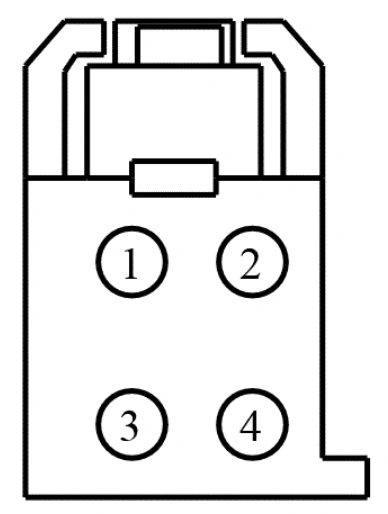

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CPS02 (GY-YE) | 14 | CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT DOWN | |
1 | CPS24 (GY) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | |
2 | RPS12 (YE-VT) 20 | CTRL MOD. - DRIVER SEAT SENSORS RECLINE - | ||
3 | CPS03 (VT-GY) 14 | CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT UP | ||
3 | CPS25 (WH-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | |
4 | VPS10 (BU-GN) | 20 | SENSOR - DRIVER SEAT HEIGHT FRONT / TILT |
