Connector End View C367 - Driver Side Airbag — OEM Connector End Views · Reference 3924

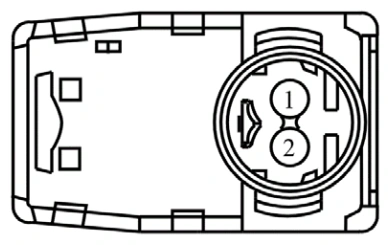

Connector End View C367 - Driver Side Airbag — original illustration 1, reference 3924Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR106 (VT-GY)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER OUTBOARD +
2	RR106 (YE-OG)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER OUTBOARD -

Available Pigtail Kits

Service Part Number:

BU2Z-14S411-BHA

Pigtail Kit Part Number

Gauge:

WPT-1225

20

Connector End View C367 - Driver Side Airbag — original illustration 2, reference 3924Original colors & callouts · Select to enlarge

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Airbag - Side Curtain

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Sensor - Side Impact

Ford_Mustang_all_2015-2017.pdf · source reference 3924
