Connector End View C363 - Front Seat Height Adjustment Motor LH

OEM Connector End Views

Source configuration appliesSource reference 3,922HTML edition
← Chapter contentsManual collection

Base Part #

part# N/A

Service Pigtail

See Below

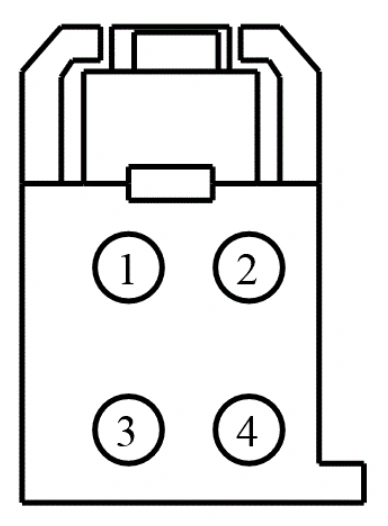

Connector End View C363 - Front Seat Height Adjustment Motor LH — original illustration 1, reference 3922Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CPS04 (YE-OG)

14

CTRL MOD. - DRIVER SEAT HEIGHT REAR / PARALLEL DOWN

1

CPS26 (YE-BU) 14

SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN

2

VPS11 (GN-BN) 20

SENSOR - DRIVER SEAT HEIGHT REAR / PARALLEL

3

CPS05 (BU-WH)

14

CTRL MOD. - DRIVER SEAT HEIGHT REAR / PARALLEL UP

3

CPS27 (BU-BN) 14

SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP
