Connector End View C363 - Front Seat Height Adjustment Motor LH — OEM Connector End Views · Reference 3921

3 CPS06 (GN-WH) 14 CTRL MOD. - DRIVER SEAT SLIDE REARWARD 3 CPS28 (GN) 14 SWITCH - SEAT ADJUST. DRIVER REARWARD 4 VPS09 (BN-BU) 20 SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

DU2Z-14S411-UA

WPT-1350

Gauge:

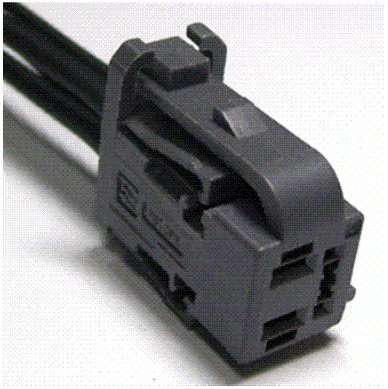

Connector End View C363 - Front Seat Height Adjustment Motor LH — original illustration 1, reference 3921Original colors & callouts · Select to enlarge

16 20

Pin material:

Tin

Cavities:

4

Vehicle Uses

Motor - Power Seat Track

Motor - Seat Height (Front)

CONNECTOR VIEWS > CONNECTOR END VIEW C363 - FRONT SEAT HEIGHT

ADJUSTMENT MOTOR LH

Connector:C363

Description

FRONT SEAT HEIGHT ADJUSTMENT MOTOR LH

Color

Harness

14D231

Ford_Mustang_all_2015-2017.pdf · source reference 3921
