Connector End View C1024 - Headlamp Control Module LH — OEM Connector End Views · Reference 4049

Service Part Number:

Pigtail Kit Part Number CU2Z-14S411-ADA

WPT-1279 Gauge:

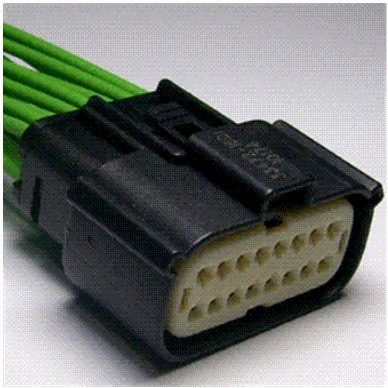

Connector End View C1024 - Headlamp Control Module LH — original illustration 1, reference 4049Original colors & callouts · Select to enlarge

16

Pin material:

Silver

Cavities:

16

Vehicle Uses

Lamp - Headlamp - High/Low Beam

Module - Heated Seat (driver)

Module - Transfer Case Shift Control

CONNECTOR VIEWS > CONNECTOR END VIEW C1024 - HEADLAMP CONTROL

MODULE LH

Connector:C1024

Description

HEADLAMP CONTROL MODULE LH

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 4049
