Connector End View C1021 - Headlamp Assembly LH

OEM Connector End Views

Source configuration appliesSource reference 4,047HTML edition

← Chapter contents Manual collection

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

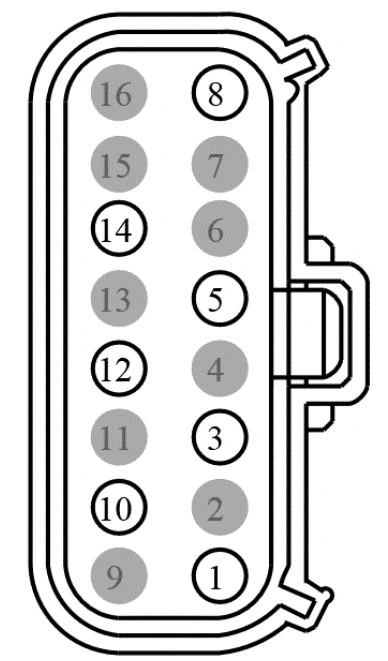

Connector End View C1021 - Headlamp Assembly LH — original illustration 1, reference 4047Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLF04 (BN-BU)	20	CTRL MOD. - BEAM LOW LEFT
2	*	*	Not Used
