Connector End View C1019 - Inline

OEM Connector End Views

Source configuration appliesSource reference 4,044HTML edition
← Chapter contentsManual collection

9

VMM23 (BN-VT)

22

CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL +

10

RMM23 (WH-GN)

22

CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL -

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

AU2Z-14S411-AHA

WPT-1083

Gauge:

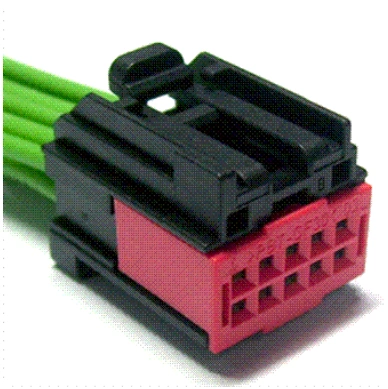

Connector End View C1019 - Inline — original illustration 1, reference 4044Original colors & callouts · Select to enlarge

18

Pin material:

Silver

Cavities:

10

Vehicle Uses

Module - Front Interface

Switch - Heater A/C Blower (Rear)

CONNECTOR VIEWS > CONNECTOR END VIEW C1019 - INLINE

InlineC1019

Description

INLINE

Color

BK

Base Part #

Service Pigtail

See Below

MALE
