Connector End View C1021 - Headlamp Assembly LH — OEM Connector End Views · Reference 4046

1 VE712 (BU-GY) 20 12C508 2 RE405 (GN-WH) 18 14B485 2 RE454 (YE-GN) 20 12C508 2 VE712 (BU-GY) 20 12C508

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

BU2Z-14S411-AKA

Pigtail Kit Part Number Gauge:

WPT-1186 16

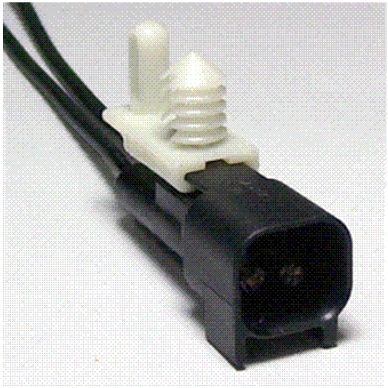

Connector End View C1021 - Headlamp Assembly LH — original illustration 1, reference 4046Original colors & callouts · Select to enlarge

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

Speaker - Tweeter - LH - Front

Speaker - Tweeter - LH - Rear

Speaker - Tweeter - RH - Front

Speaker - Tweeter - RH - Rear

Switch - Seatbelt

CONNECTOR VIEWS > CONNECTOR END VIEW C1021 - HEADLAMP ASSEMBLY LH

Connector:C1021

Description

HEADLAMP ASSEMBLY LH
