Check for Terminal Part Numbers

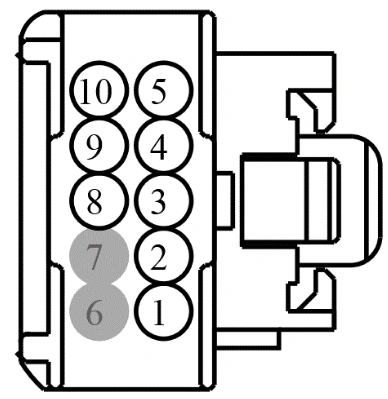

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBP18 (YE-RD) | 22 | FUSE - 18 OR CIRCUIT BREAKER | |
2 | VDN03 (GY-VT) | 22 | CTRL MOD. - LIN BUS # SPDJB 3 | |
3 | CLN09 (YE-GN) | 22 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
4 | VLN33 (GY) | 22 | CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) | |
5 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
6 | * | * | Not Used | |
7 | * | * | Not Used | |
8 | DMM23 (*) | 4 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL D |
