Connector End View C1019 - Inline

OEM Connector End Views

Source configuration appliesSource reference 4,045HTML edition
← Chapter contentsManual collection

Harness 12C508

FEMALE

Harness 14B485

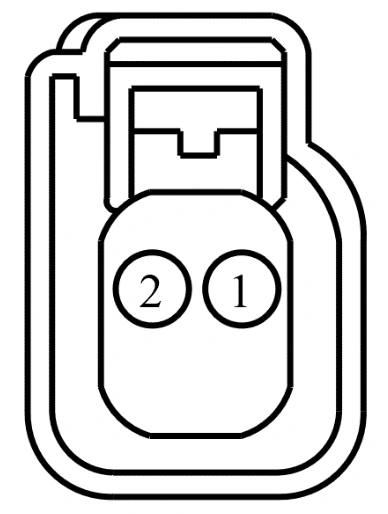

Connector End View C1019 - Inline — original illustration 1, reference 4045Original colors & callouts · Select to enlarge

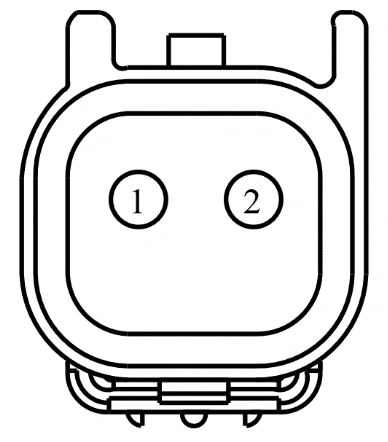

Connector End View C1019 - Inline — original illustration 2, reference 4045Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Qualifier

1

RE454 (YE-GN)

18

12C508

1

VE712 (BU-GY)

18

14B485

Ford_Mustang_all_2015-2017.pdf · source reference 4045
