Service Pigtail
Check for Terminal Part Numbers

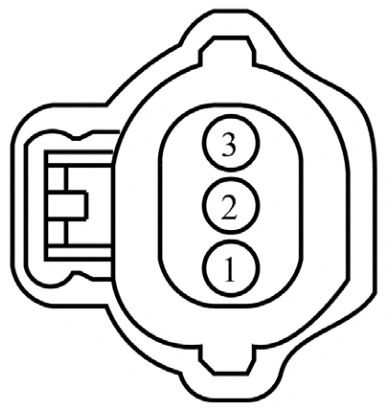

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CBB68 (GY-VT) | 20 | FUSE - 68 OR CIRCUIT BREAKER | |
2 | VLF63 (VT) | 22 | CTRL MOD. - MOTOR HEADLAMP LEVELING SIGNAL | |
3 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1341 | Service Part Number: CU2Z-14S411-AXA Gauge: 20 Pin material: Tin (greased) Cavities: |
