Check for Terminal Part Numbers

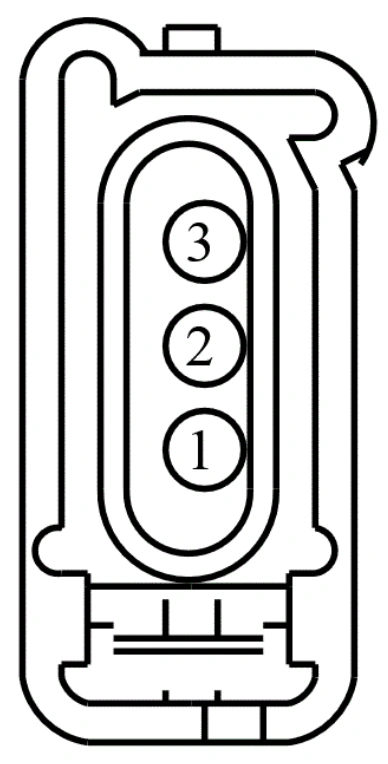

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | GD123 (BK-GY) 20 | GROUND - FENDER FRONT RIGHT | ||
2 | CLS07 (BN-YE) 20 | CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT | ||
3 | CLS25 (YE-VT) | 20 | CTRL MOD. - TURN LAMP RIGHT FRONT |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1167 | Service Part Number: 3U2Z-14S411-FHAB |
