Connector End View C1246 - Turbocharger (Tc) Wastegate Regulating Valve Solenoid

OEM Connector End Views

Source configuration appliesSource reference 4,122HTML edition

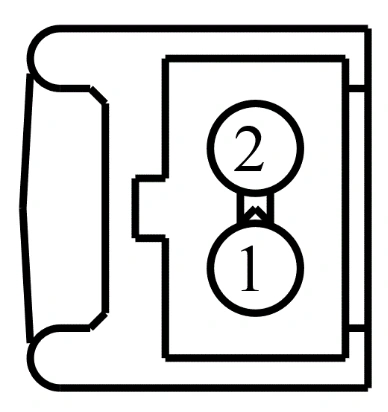

Connector End View C1246 - Turbocharger (Tc) Wastegate Regulating Valve Solenoid — original illustration 1, reference 4122Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE460 (VT-WH)	18	CTRL MOD. - POWERTRAIN # WASTEGATE SOLENOID (WGT_CV)
2	CBK03 (GY)	18	FUSE - 42 OR CIRCUIT BREAKER (VPWR 3)

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-GLB

WPT-1054

Gauge:

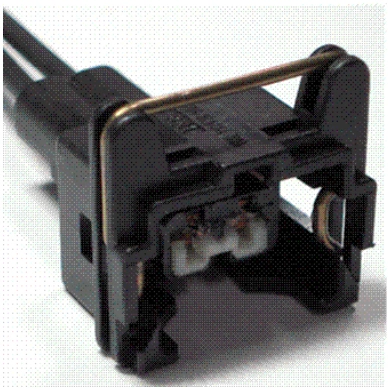

Connector End View C1246 - Turbocharger (Tc) Wastegate Regulating Valve Solenoid — original illustration 2, reference 4122Original colors & callouts · Select to enlarge

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Actuator - Turbocharger Waste Gate

Fuel Injector

Ford_Mustang_all_2015-2017.pdf · source reference 4122
