Connector End View C1286 - Intake Manifold Runner Control Bank 1 ( Imrc1) Sensor

OEM Connector End Views

Source configuration appliesSource reference 4,125HTML edition

← Chapter contents Manual collection

20

Pin material:

Silver

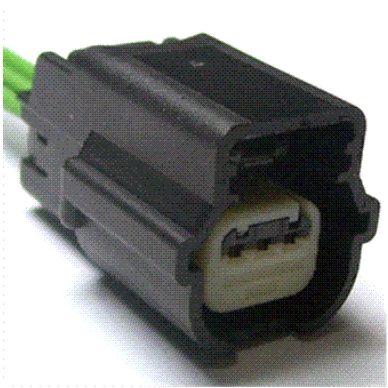

Connector End View C1286 - Intake Manifold Runner Control Bank 1 ( Imrc1) Sensor — original illustration 1, reference 4125Original colors & callouts · Select to enlarge

Cavities:

3

Vehicle Uses

Monitor - Crankcase Ventilation

Sensor - Air Suspension

Sensor - Front Park Aid (FPA)

Sensor - Occupant Classification

Sensor - Reverse Park Aide (RPA)

Switch - A/C Compressor Clutch Cycling

Switch - A/C High Pressure

CONNECTOR VIEWS > CONNECTOR END VIEW C1286 - INTAKE MANIFOLD RUNNER

CONTROL BANK 1 (IMRC1) SENSOR

Connector:C1286

Description

INTAKE MANIFOLD RUNNER CONTROL BANK 1 (IMRC1) SENSOR

Color

LT GY

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below
