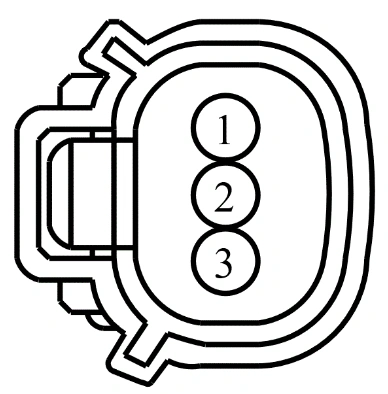

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VE742 (BU-WH) | 20 | SENSOR - INTAKE PORT DEACT VALVE POSITION (IMRC1M) | |
2 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | |
3 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 (SIGRTN) | |
3 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 (SIGRTN) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1261 | Service Part Number: CU2Z-14S411-MA Gauge: 16 Pin material: Silver |
