Connector End View C1288 - Intake Manifold Runner Control Bank 2 ( Imrc2) Sensor

OEM Connector End Views

Source configuration appliesSource reference 4,127HTML edition

← Chapter contents Manual collection

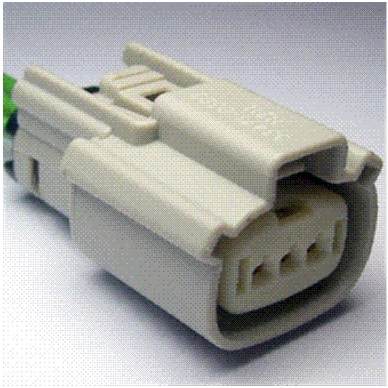

Connector End View C1288 - Intake Manifold Runner Control Bank 2 ( Imrc2) Sensor — original illustration 1, reference 4127Original colors & callouts · Select to enlarge

Cavities:

3

Vehicle Uses

Coil - Ignition

CONNECTOR VIEWS > CONNECTOR END VIEW C1288 - INTAKE MANIFOLD RUNNER

CONTROL BANK 2 (IMRC2) SENSOR

Connector:C1288

Description

INTAKE MANIFOLD RUNNER CONTROL BANK 2 (IMRC2) SENSOR

Color

LT GY

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below
