Check for Terminal Part Numbers

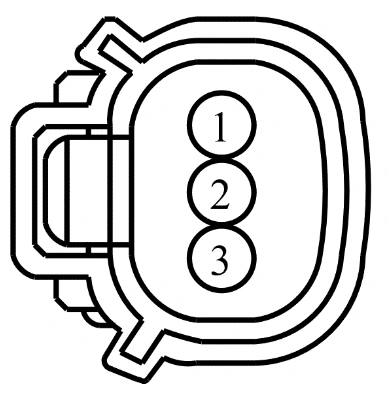

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VE741 (YE-OG) | 20 | SENSOR - INTAKE MANIFOLD MONITOR (IMRC2) | |
2 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | |
3 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 (SIGRTN) | |
3 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 (SIGRTN) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1261 | Service Part Number: CU2Z-14S411-MA Gauge: 16 Pin material: Silver |
