Connector End View C1323 - Front Fog Lamp RH

OEM Connector End Views

Source configuration appliesSource reference 4,131HTML edition

← Chapter contents Manual collection

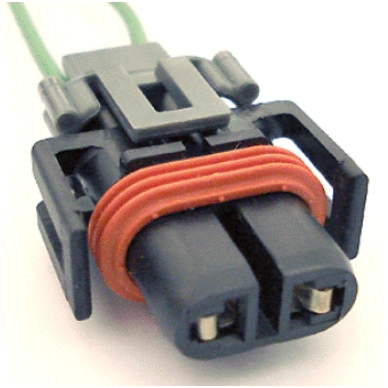

Connector End View C1323 - Front Fog Lamp RH — original illustration 1, reference 4131Original colors & callouts · Select to enlarge

2

Vehicle Uses

Lamp - Fog/Driving

Lamp - Headlamp - Low Beam

CONNECTOR VIEWS > CONNECTOR END VIEW C1323 - FRONT FOG LAMP RH

Connector:C1323

Description

FRONT FOG LAMP RH

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below
