Connector End View C1366 - Camshaft Position Bank 1 Sensor 1 (Cmp11)

OEM Connector End Views

Source configuration appliesSource reference 4,133HTML edition

← Chapter contents Manual collection

Connector End View C1366 - Camshaft Position Bank 1 Sensor 1 (Cmp11) — original illustration 1, reference 4133Original colors & callouts · Select to enlarge

2

Vehicle Uses

Lamp - Fog/Driving

Lamp - Headlamp - Low Beam

CONNECTOR VIEWS > CONNECTOR END VIEW C1366 - CAMSHAFT POSITION BANK

1 SENSOR 1 (CMP11)

Connector:C1366

Description

CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

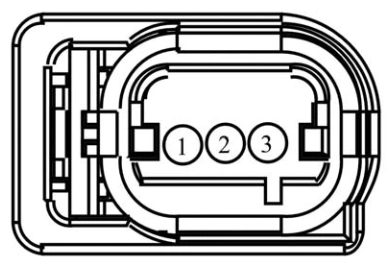

Connector End View C1366 - Camshaft Position Bank 1 Sensor 1 (Cmp11) — original illustration 2, reference 4133Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers
