Connector End View C1369 - Variable Camshaft Timing Bank 1 Solenoid 2 (Vct12)

OEM Connector End Views

Source configuration appliesSource reference 4,136HTML edition

← Chapter contents Manual collection

Connector End View C1369 - Variable Camshaft Timing Bank 1 Solenoid 2 (Vct12) — original illustration 1, reference 4136Original colors & callouts · Select to enlarge

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses

Sensor - Adjustable Pedal

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position

CONNECTOR VIEWS > CONNECTOR END VIEW C1369 - VARIABLE CAMSHAFT

TIMING BANK 1 SOLENOID 2 (VCT12)

Connector:C1369

Description

VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 2 (VCT12)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

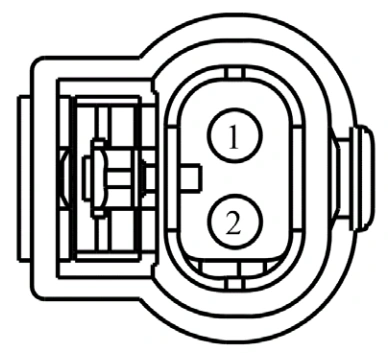

Connector End View C1369 - Variable Camshaft Timing Bank 1 Solenoid 2 (Vct12) — original illustration 2, reference 4136Original colors & callouts · Select to enlarge
