Connector End View C1381b - Powertrain Control Module (PCM)

OEM Connector End Views

Source configuration appliesSource reference 4,139HTML edition

← Chapter contents Manual collection

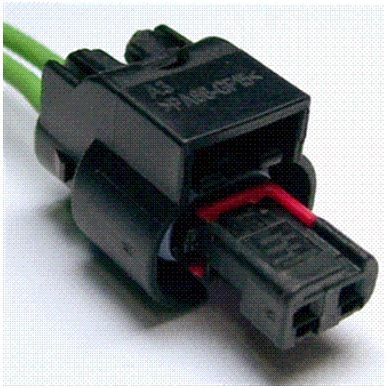

Connector End View C1381b - Powertrain Control Module (PCM) — original illustration 1, reference 4139Original colors & callouts · Select to enlarge

Vehicle Uses

Solenoid - Engine Variable Timing

CONNECTOR VIEWS > CONNECTOR END VIEW C1381B - POWERTRAIN CONTROL

MODULE (PCM)

Connector:C1381B

Description

POWERTRAIN CONTROL MODULE (PCM)

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

Not Available

Ford_Mustang_all_2015-2017.pdf · source reference 4139
