Service Pigtail
Check for Terminal Part Numbers

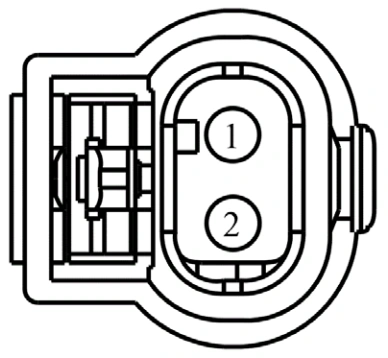

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CBK02 (GN) | 20 | FUSE - 40 OR CIRCUIT BREAKER (VPWR) | |
2 | CE421 (VT) | 20 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT11) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1251 | Service Part Number: CU2Z-14S411-DA Gauge: 18 Pin material: Silver Cavities: 2 |
