Connector End View C1367 - Camshaft Position Bank 2 Sensor 1 (Cmp21)

OEM Connector End Views

Source configuration appliesSource reference 4,135HTML edition

← Chapter contents Manual collection

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

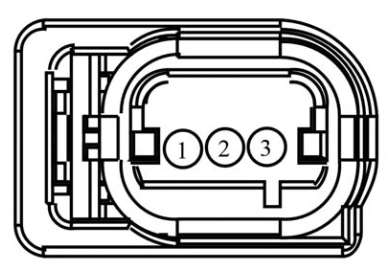

Connector End View C1367 - Camshaft Position Bank 2 Sensor 1 (Cmp21) — original illustration 1, reference 4135Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	LE111 (VT-GN)	18	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)
2	VE738 (YE-BU)	18	SENSOR - CAMSHAFT POSITION BANK 2 EX (CMP21)
3	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 (SIGRTN)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1039	Service Part Number: 9U2Z-14S411-AGA Gauge: 18

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1039

Service Part Number:

9U2Z-14S411-AGA

Gauge:
