Check for Terminal Part Numbers

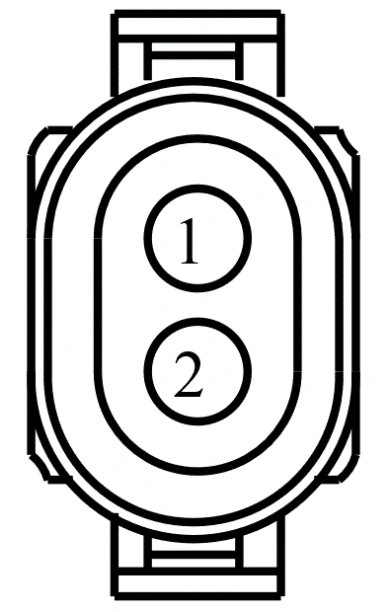

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CLF34 (YE-OG) | 20 | CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON | |
2 | GD123 (BK-GY) | 20 | GROUND - FENDER FRONT RIGHT |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-952 | Service Part Number: 3U2Z-14S411-VZB Gauge: 16 Pin material: Silver Cavities: |
