Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | LE111 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) | |
2 | VE736 (WH-GN) | 18 | SENSOR - CAMSHAFT POSITION BANK 1 EX (CMP11) | |
3 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 (SIGRTN) |
Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number 9U2Z-14S411-AGA
WPT-1039 Gauge:
18
Pin material:
Tin (greased)
Cavities:
3
Vehicle Uses
Sensor - Adjustable Pedal
Sensor - Cam Shaft Position
Sensor - Crank Shaft Position

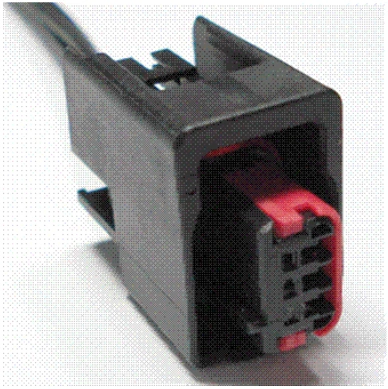

CONNECTOR VIEWS > CONNECTOR END VIEW C1367 - CAMSHAFT POSITION BANK
2 SENSOR 1 (CMP21)
Connector:C1367
Description
CAMSHAFT POSITION BANK 2 SENSOR 1 (CMP21)
