Connector End View C1260 - Air Conditioning (A/C) Pressure Transducer — OEM Connector End Views · Reference 4124

1	RE406 (GY-VT)	22	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)
2	VH433 (VT-OG)	22	TRANSDUCER - A/C PRESSURE (ACPT) +
3	LE423 (GN-VT)	22	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)

Available Pigtail Kits

Service Part Number:

9U2Z-14S411-CC

Gauge:

Pigtail Kit Part Number 20

WPT-1400 Pin material:

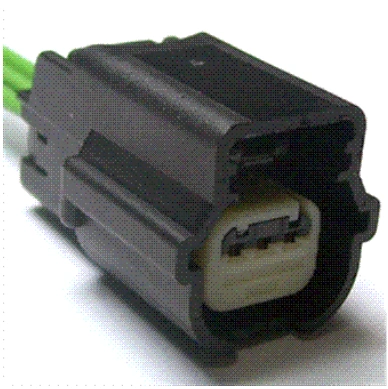

Connector End View C1260 - Air Conditioning (A/C) Pressure Transducer — original illustration 1, reference 4124Original colors & callouts · Select to enlarge

Silver

Cavities:

3

Vehicle Uses

Monitor - Crankcase Ventilation

Sensor - Air Suspension

Sensor - Front Park Aid (FPA)

Sensor - Occupant Classification

Sensor - Reverse Park Aide (RPA)

Switch - A/C Compressor Clutch Cycling

Switch - A/C High Pressure

Pigtail Kit Part Number Service Part Number:

WPT-1315 9U2Z-14S411-CB

Gauge:

Ford_Mustang_all_2015-2017.pdf · source reference 4124
