CONNECTOR VIEWS > CONNECTOR END VIEW C1381E - POWERTRAIN CONTROL

MODULE (PCM)

Connector:C1381E

Description

POWERTRAIN CONTROL MODULE (PCM)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

Not Available

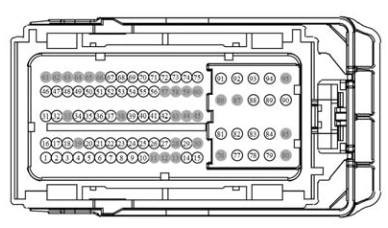

Connector End View C1381e - Powertrain Control Module (PCM) — original illustration 1, reference 4143Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CE205 (GN-BU)

20

CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +

2

CE208 (YE-OG)

20

CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) +

3

CE206 (GY-YE)

20

CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +
