CONNECTOR VIEWS > CONNECTOR END VIEW C1427 - MANIFOLD ABSOLUTE

PRESSURE/INTAKE AIR TEMPERATURE 2 (MAP/IAT2) SENSOR

Connector:C1427

Description

MANIFOLD ABSOLUTE PRESSURE/INTAKE AIR TEMPERATURE 2 (MAP/IAT2) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

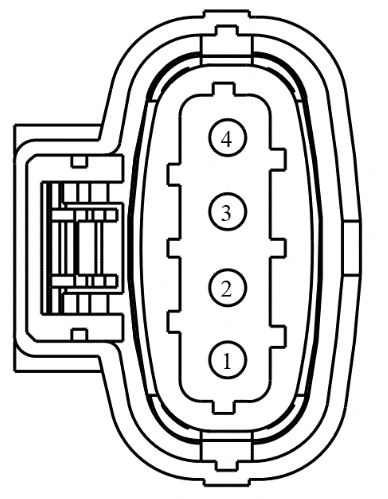

Connector End View C1427 - Manifold Absolute Pressure/Intake Air Temperature 2 (Map/Iat2) Sensor — original illustration 1, reference 4146Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE454	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2
