Connector End View C1449 - Throttle Position (Tp) Sensor

OEM Connector End Views

Source configuration appliesSource reference 4,148HTML edition

← Chapter contents Manual collection

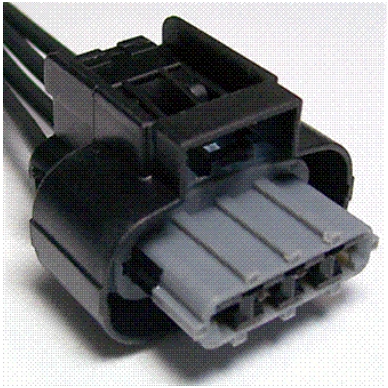

Connector End View C1449 - Throttle Position (Tp) Sensor — original illustration 1, reference 4148Original colors & callouts · Select to enlarge

Sensor - Manifold Pressure/Intake Temperature

CONNECTOR VIEWS > CONNECTOR END VIEW C1449 - THROTTLE POSITION (TP)

SENSOR

Connector:C1449

Description

THROTTLE POSITION (TP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 4148
