Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE421 (VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT11) | |
2 | CBK02 (GN) | 18 | FUSE - 40 OR CIRCUIT BREAKER (VPWR) |

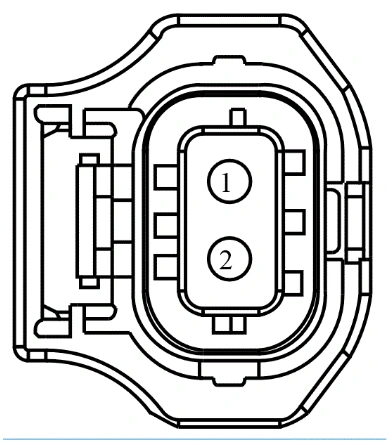

CONNECTOR VIEWS > CONNECTOR END VIEW C1452 - VARIABLE CAMSHAFT
TIMING BANK 2 SOLENOID 1 (VCT21)
Connector:C1452
Description
VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 1 (VCT21)
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
