CONNECTOR VIEWS > CONNECTOR END VIEW C1463A - POWER STEERING

CONTROL MODULE (PSCM)

Connector:C1463A

Description

POWER STEERING CONTROL MODULE (PSCM)

Color

Harness

14B060

Base Part #

part# N/A

Service Pigtail

See Below

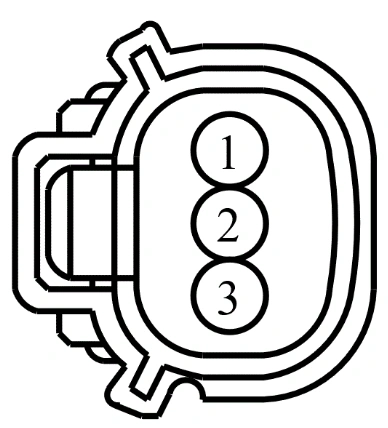

Connector End View C1463a - Power Steering Control Module (Pscm) — original illustration 1, reference 4153Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB64 (GN-VT)	20	FUSE - 64 OR CIRCUIT BREAKER
