Connector End View C1465 - Front Impact Severity Sensor LH

OEM Connector End Views

Source configuration appliesSource reference 4,156HTML edition

← Chapter contents Manual collection

part# N/A

Service Pigtail

See Below

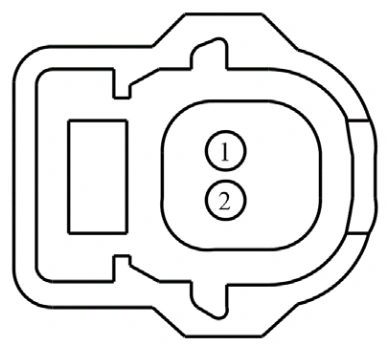

Connector End View C1465 - Front Impact Severity Sensor LH — original illustration 1, reference 4156Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR213 (VT-GN)	20	SENSOR - IMPACT FRONT 1ST
2	RR129 (YE-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 1ST -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC Gauge: 20 Pin material: Silver Cavities: 2 Vehicle Uses

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1314

Service Part Number:

8U2Z-14S411-AAC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses
