Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VR214 (WH-BU) | 20 | SENSOR - IMPACT FRONT 2ND | |
2 | RR130 (GN-BU) | 20 | CTRL MOD. - SENSOR IMPACT FRONT 2ND |
Available Pigtail Kits
Service Part Number:
8U2Z-14S411-AAC
Gauge:
20
Pigtail Kit Part Number
Pin material:
WPT-1314
Silver
Cavities:
2
Vehicle Uses
Sensor - Crash (Engine Compartment)
Sensor - Seat Track Position
Sensor - Side Impact
Solenoid - Down Shift
Solenoid - Torque Control Coupling
Valve - Heated PCV
Valve - Heater Core Shut Off
Valve - Transmission Fluid Warmer

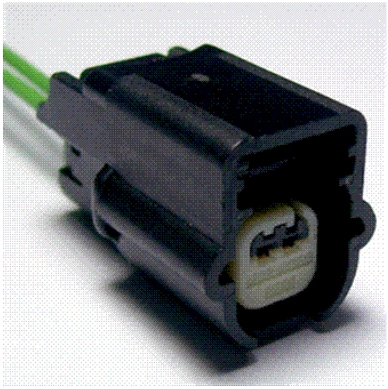

CONNECTOR VIEWS > CONNECTOR END VIEW C1510 - UNIVERSAL HEATED
OXYGEN SENSOR (HO2S) #11
