CONNECTOR VIEWS > CONNECTOR END VIEW C1512 - KNOCK SENSOR 1 (KS1)

Connector:C1512

Description

KNOCK SENSOR 1 (KS1)

Color

DK GY

Harness

14B485

Base Part #

part# N/A

Service Pigtail

See Below

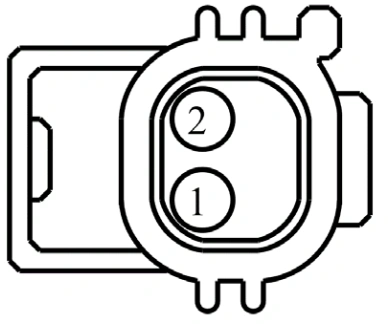

Connector End View C1512 - Knock Sensor 1 (Ks1) — original illustration 1, reference 4160Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE323 (WH-BN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-)
2	VE801 (VT-OG)	20	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+)
