Connector End View C1514 - Knock Sensor 2 (Ks2) — OEM Connector End Views · Reference 4162

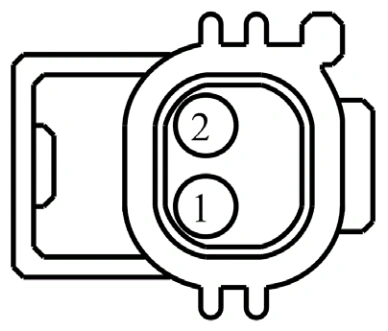

Connector End View C1514 - Knock Sensor 2 (Ks2) — original illustration 1, reference 4162Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE324 (BN-GN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2-)
2	VE802 (BN-BU)	20	SENSOR - KNOCK 2ND BANK 1ST (KS2+)

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-CZAB

WPT-987

Gauge:

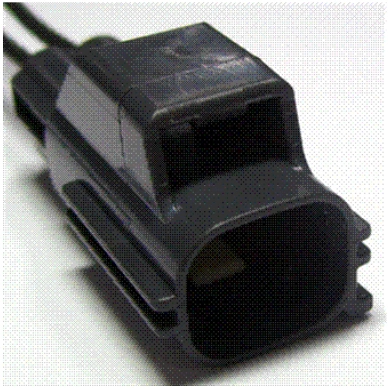

Connector End View C1514 - Knock Sensor 2 (Ks2) — original illustration 2, reference 4162Original colors & callouts · Select to enlarge

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Sensor - Cylinder Head Temperature

Sensor - Knock
