Connector End View C1514 - Knock Sensor 2 (Ks2)

OEM Connector End Views

Source configuration appliesSource reference 4,161HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-CZAB

WPT-987

Gauge:

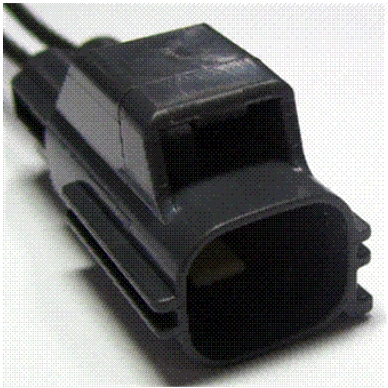

Connector End View C1514 - Knock Sensor 2 (Ks2) — original illustration 1, reference 4161Original colors & callouts · Select to enlarge

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Sensor - Cylinder Head Temperature

Sensor - Knock

CONNECTOR VIEWS > CONNECTOR END VIEW C1514 - KNOCK SENSOR 2 (KS2)

Connector:C1514

Description

KNOCK SENSOR 2 (KS2)

Color

DK GY

Harness

14B485

Base Part #

part# N/A

Service Pigtail

See Below
