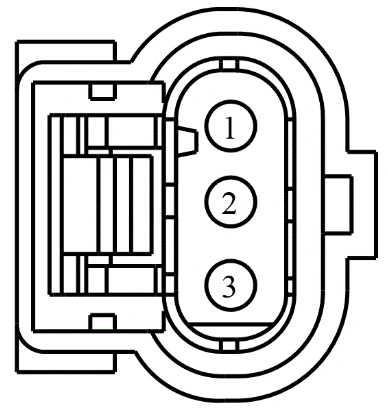

CONNECTOR VIEWS > CONNECTOR END VIEW C1539 - IGNITION COIL-ON-PLUG 2
Connector:C1539
Description
IGNITION COIL-ON-PLUG 2
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE304 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D) |
