CE305 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG 1 18 (BU-OG) ASSEMBLY 3 (COP3B) GD108 2 16 GROUND - CHASSIS / BATTERY (BK-VT) 3 CBK04 (VT) 16 FUSE - 44 OR CIRCUIT BREAKER (VPWR)
Original table alignment retained · Scroll horizontally if needed

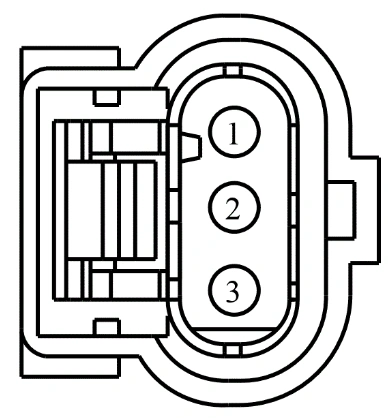

CONNECTOR VIEWS > CONNECTOR END VIEW C1541 - IGNITION COIL-ON-PLUG 4
Connector:C1541
Description
IGNITION COIL-ON-PLUG 4
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
