Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE443 (BN-VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4 (VCT22) | |
2 | CBK02 (GN) | 18 | FUSE - 40 OR CIRCUIT BREAKER (VPWR) |

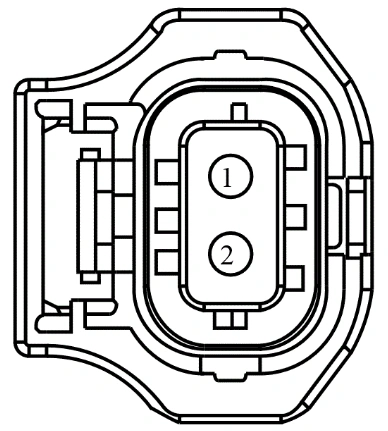

CONNECTOR VIEWS > CONNECTOR END VIEW C1551B - POWERTRAIN CONTROL
MODULE (PCM)
Connector:C1551B
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
14290
Base Part #
part# N/A
Service Pigtail
Not Available
