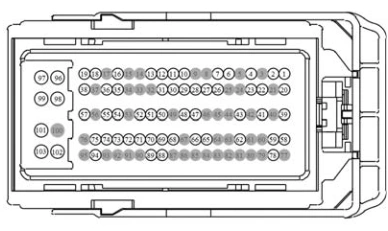

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE233 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) | |
2 | CH302 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) | |
3 | * | * | Not Used | |
4 | CEC01 (WH-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL HIGH (HFC) | |
5 | * | * | Not Used | |
6 | CE904 (GN-VT) | 22 | SWITCH - CLUTCH PEDAL POSITION # TOP OF TRAVEL (CPP-TT) | |
7 | RES08 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # SPEED CONTROL COMMAND RETURN (SCCSRTN) | |
8 | * | * | Not Used | |
9 | * | * | Not Used | |
10 | LE137 (BU-GY) | 22 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) |
