CONNECTOR VIEWS > CONNECTOR END VIEW C1551E - POWERTRAIN CONTROL

MODULE (PCM)

Connector:C1551E

Description

POWERTRAIN CONTROL MODULE (PCM)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

Not Available

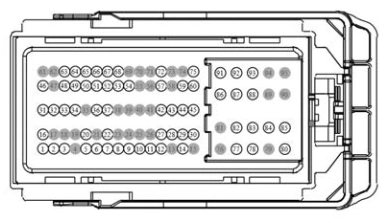

Connector End View C1551e - Powertrain Control Module (PCM) — original illustration 1, reference 4171Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	CE421 (VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT11)
2	CET18 (GY-YE)	20	CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SS1)
3	CE148 (YE-GY)	18	CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE (TCBY)
